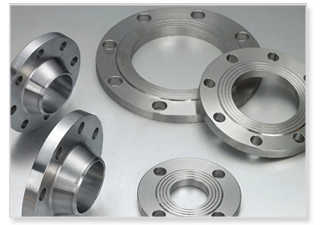

| En 1092 - Flanges |
| |
|
| |
|
|
|
| Flange type (typ) as in DIN EN 1092-1 |
01 (Plate [slip-on] flanges for welding) |
13 (Hubbed threaded flanges) |
02 (Loose plate flanges with weld-on plate collar) |
21 (Integral flanges) |
04 (Loose plate flanges with weld-neck collar) |
32 (Weld-on plate collars) |
05 (Blank [blind] flanges) |
33 (Lapped pipe ends) |
11 (Weld-neck flanges) |
34 (Weld-neck collars) |
12 (Hubbed slip-on flanges for welding) |
|
|
| |
| Correlation of the flange sizes & types covered by the older DIN Standards with those included in DIN EN 1092-1 |
| DIN Standard |
Flange type as in DIN EN 1092-1 |
Item description |
Size range (DN) as in DIN Standard |
Size range (DN) as in DIN EN 1092-1 |
*2512 |
– |
Tongue and groove |
Up to PN 160 DN 4 to DN 1000 |
Up to PN 100 DN 10 to DN 2000 |
*2513 |
– |
Spigot and recess |
DN 10 to DN 1000 |
Up to PN 100 DN 10 to DN 2000 |
*2514 |
– |
Spigot with groove and recess |
DN 10 to DN 3000 |
Up to PN 100 DN 10 to DN 2000 |
2527 |
05 |
Blank flanges, PN 2,5 |
Not specified. |
DN 10 to DN 2000 |
|
05 |
Blank flanges, PN 6 |
DN 10 to DN 500 |
DN 10 to DN 2000 |
|
05 |
Blank flanges, PN 10 |
DN 10 to DN 500 |
DN 10 to DN 1200 |
|
05 |
Blank flanges, PN 16 |
DN 10 to DN 500 |
DN 10 to DN 1200 |
|
05 |
Blank flanges, PN 25 |
DN 10 to DN 500 |
DN 10 to DN 600 |
|
05 |
Blank flanges, PN 40 |
DN 10 to DN 500 |
DN 10 to DN 600 |
|
05 |
Blank flanges, PN 64 (now PN 63) |
DN 10 to DN 400 |
DN 10 to DN 400 |
|
05 |
Blank flanges, PN 100 |
DN 10 to DN 350 |
DN 10 to DN 350 |
2543 |
– |
Cast steel flanges, PN 16 |
DN 10 to DN 2200 |
DN 10 to DN 2000 |
2544 |
– |
Cast steel flanges, PN 25 |
DN 10 to DN 2000 |
DN 10 to DN 2000 |
2545 |
– |
Cast steel flanges, PN 40 |
DN 10 to DN 1600 |
DN 10 to DN 600 |
2546 |
– |
Cast steel flanges, PN 64 (now PN 63) |
DN 10 to DN 1200 |
DN 10 to DN 1200 |
2547 |
– |
Cast steel flanges, PN 100 |
DN 125 to DN 700 |
DN 10 to DN 500 |
2566 |
13 |
Hubbed threaded flanges, PN 10 to PN 16 |
DN 6 to DN 100 |
DN 10 to DN 600 |
2573 |
01 |
Plate flanges for brazing or welding, PN 6 |
DN 10 to DN 500 |
DN 10 to DN 600 |
2576 |
01 |
Plate flanges for brazing or welding, PN 10 |
DN 10 to DN 500 |
DN 10 to DN 600 |
2630 |
11 |
Weld-neck flanges, PN 1 and PN 2,5 |
DN 10 to DN 4000 |
DN 10 to DN 4000 |
2631 |
11 |
Weld-neck flanges, PN 6 |
DN 10 to DN 3600 |
DN 10 to DN 3600 |
2632 |
11 |
Weld-neck flanges, PN 10 |
DN 10 to DN 3000 |
DN 10 to DN 3000 |
2633 |
11 |
Weld-neck flanges, PN 16 |
DN 10 to DN 2000 |
DN 10 to DN 2000 |
2634 |
11 |
Weld-neck flanges, PN 25 |
DN 10 to DN 1000 |
DN 10 to DN 1000 |
2635 |
11 |
Weld-neck flanges, PN 40 |
DN 10 to DN 500 |
DN 10 to DN 600 |
2636 |
11 |
Weld-neck flanges, PN 64 (now PN 63) |
DN 10 to DN 400 |
DN 10 to DN 400 |
2637 |
11 |
Weld-neck flanges, PN 100 |
DN 10 to DN 350 |
DN 10 to DN 350 |
2641 |
02, 33, 32 |
Loose plate flanges, lapped pipe ends, weld-on plate collars, PN 6 |
DN 10 to DN 1200 |
DN 10 to DN 600 |
2642 |
02, 33, 32 |
Loose plate flanges, lapped pipe ends, weld-on plate collars, PN 10 |
DN 10 to DN 800 |
DN 10 to DN 600 |
2655 |
02, 33, 32 |
Loose plate flanges, weld-on plate collars, PN 25 |
DN 10 to DN 500 |
DN 10 to DN 600 |
2656 |
02, 33, 32 |
Loose plate flanges, weld-on plate collars, PN 40 |
DN 10 to DN 400 |
DN 10 to DN 600 |
2673 |
04, 34 |
Loose plate flanges with weld-neck collar, PN 10 |
DN 10 to DN 1200 |
DN 10 to DN 600 |
*Flange feature only; not the call out for a complete flange |
|
| |
| Some Flange feature equivalents: DIN EN 1092 from DIN |
| DIN EN 1092-1 |
DIN |
DIN EN 1092-1 Type B Raised Face |
DIN 2526 Form C |
DIN EN 1092-1 Type C Tongue |
DIN 2512 Feder (Form F) |
DIN EN 1092-1 Type D Groove |
DIN 2512 Nut (Form N) |
DIN EN 1092-1 Type E Spigot |
DIN 2513 Vorsprung (Form V) |
DIN EN 1092-1 Type F Recess |
DIN 2513 Rücksprung (Form R) |
|
| |
| |
| |
|
|
| |
|
|
| EN 1092 Flanges Classes |
| DIN EN 1092-1 - PN2.5 |
DIN EN 1092-1 - PN6 |
DIN EN 1092-1 - PN10 |
| DIN EN 1092-1 - PN16 |
DIN EN 1092-1 - PN25 |
DIN EN 1092-1 - PN40 |
| |
|
|
|
|
|
|
